Data wrangling - III

Lecture 7

Dr. Mine Çetinkaya-Rundel

Duke University
STA 313 - Spring 2023

Warm up

Announcements

  • Tomorrow in lab: Project proposal peer review

    • You’ll be assessed on the quality (and participation) of your peer review

    • Updates based on peer review are due Friday at 5pm

    • Your proposal will be “graded” after that, by me

  • HW 2 is due Thursday

Setup

# load packages
library(countdown)
library(tidyverse)
library(glue)
library(lubridate)
library(scales)
library(ggthemes)
library(gt)
library(palmerpenguins)
library(openintro)
library(ggrepel)

# set theme for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 14))

# set width of code output
options(width = 65)

# set figure parameters for knitr
knitr::opts_chunk$set(
  fig.width = 7,        # 7" width
  fig.asp = 0.618,      # the golden ratio
  fig.retina = 3,       # dpi multiplier for displaying HTML output on retina
  fig.align = "center", # center align figures
  dpi = 300             # higher dpi, sharper image
)

HW 1 lessons learned

Highlights

  • Review HW 1 issues, and show us you reviewed them by closing the issue.

  • DO NOT hard code paths! Use the here package to help with relative paths, if you need.

Checks

Go to your HW 02 repo and make sure all your changes are committed. Then pull. You’ll see there were some updates. Fix merge conflicts, if any. Then push. Check that your document renders.

Warnings and messages

  • You should suppress package loading and data loading messages with message: false as a chunk option

  • You should also suppress warnings with warning: false after making sure you’re ok with them, or update your code to eliminate warnings

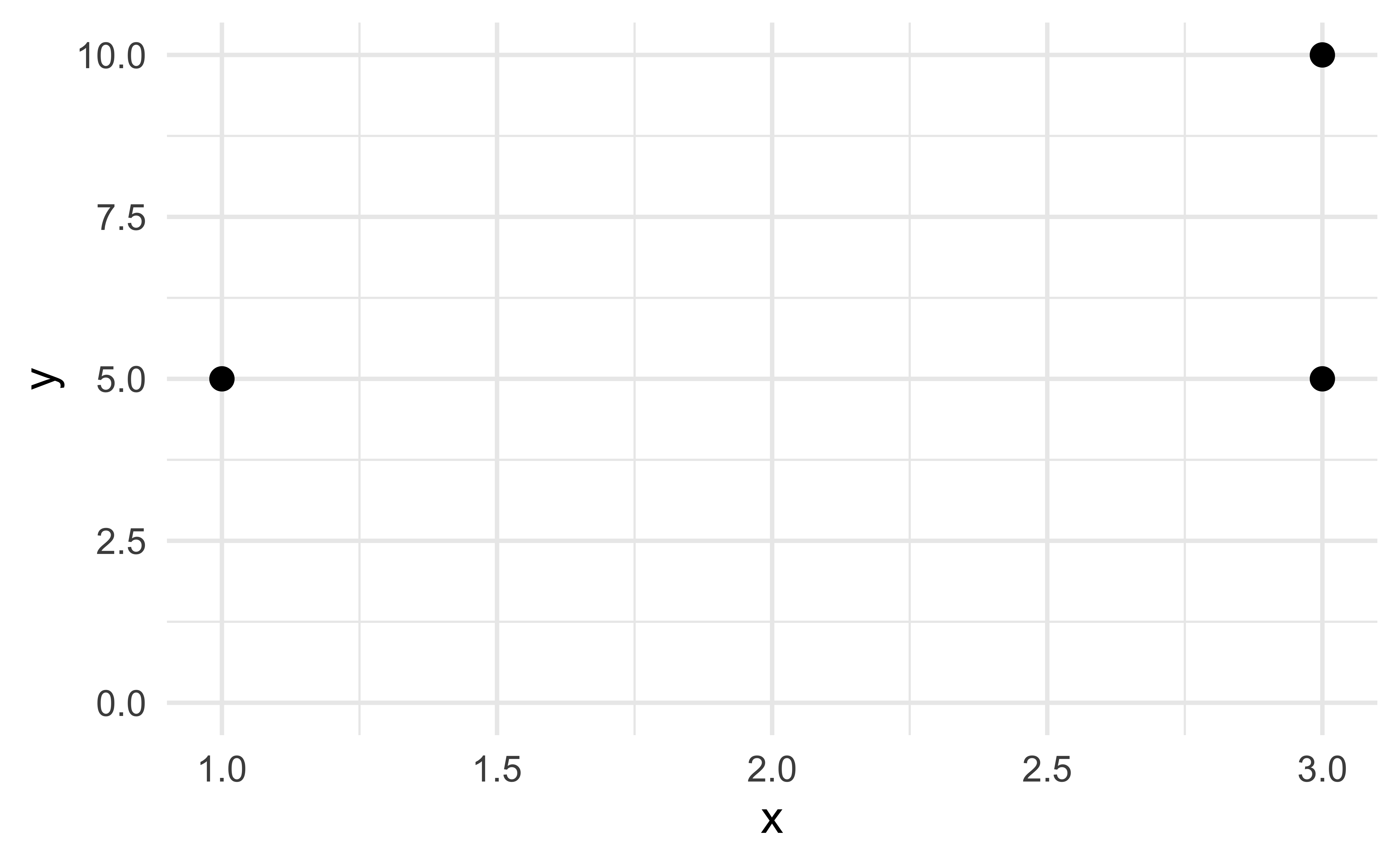

Missing values I

Is it ok to suppress the following warning? Or should you update your code to eliminate it?

df <- tibble(
  x = c(1, 2, 3, NA, 3),
  y = c(5, NA, 10, 0, 5)
)
ggplot(df, aes(x = x, y = y)) +
  geom_point(size = 3)
Warning: Removed 2 rows containing missing values
(`geom_point()`).

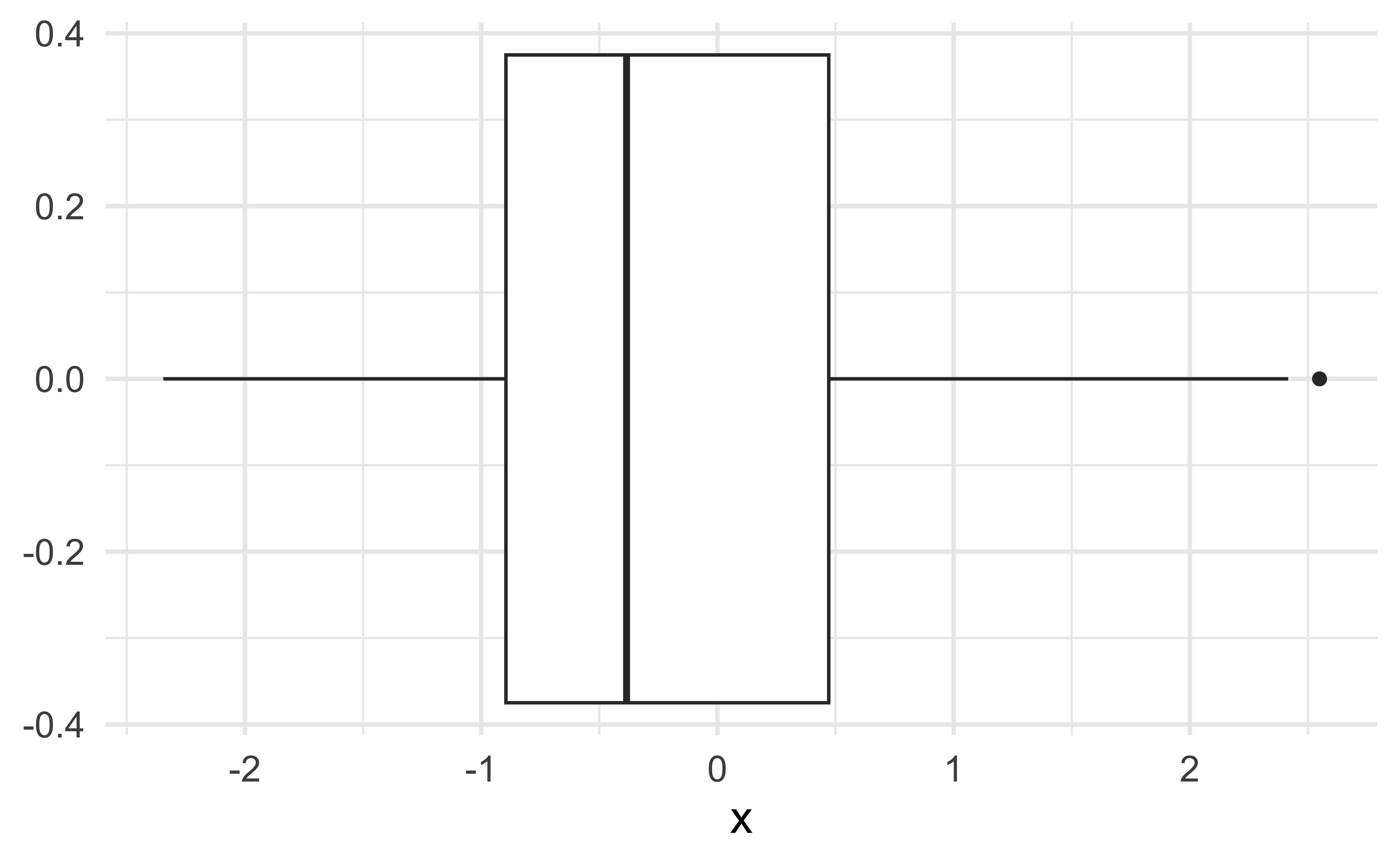

Missing values II

set.seed(1234)
df <- tibble(x = rnorm(100))
p <- ggplot(df, aes(x = x)) +
  geom_boxplot()
p

df |>
  summarize(med_x = median(x))
# A tibble: 1 × 1
   med_x
   <dbl>
1 -0.385

Missing values II

Is it ok to suppress the following warning? Or should you update your code to eliminate it?

p + xlim(0, 2)
Warning: Removed 69 rows containing non-finite values
(`stat_boxplot()`).

Missing values II

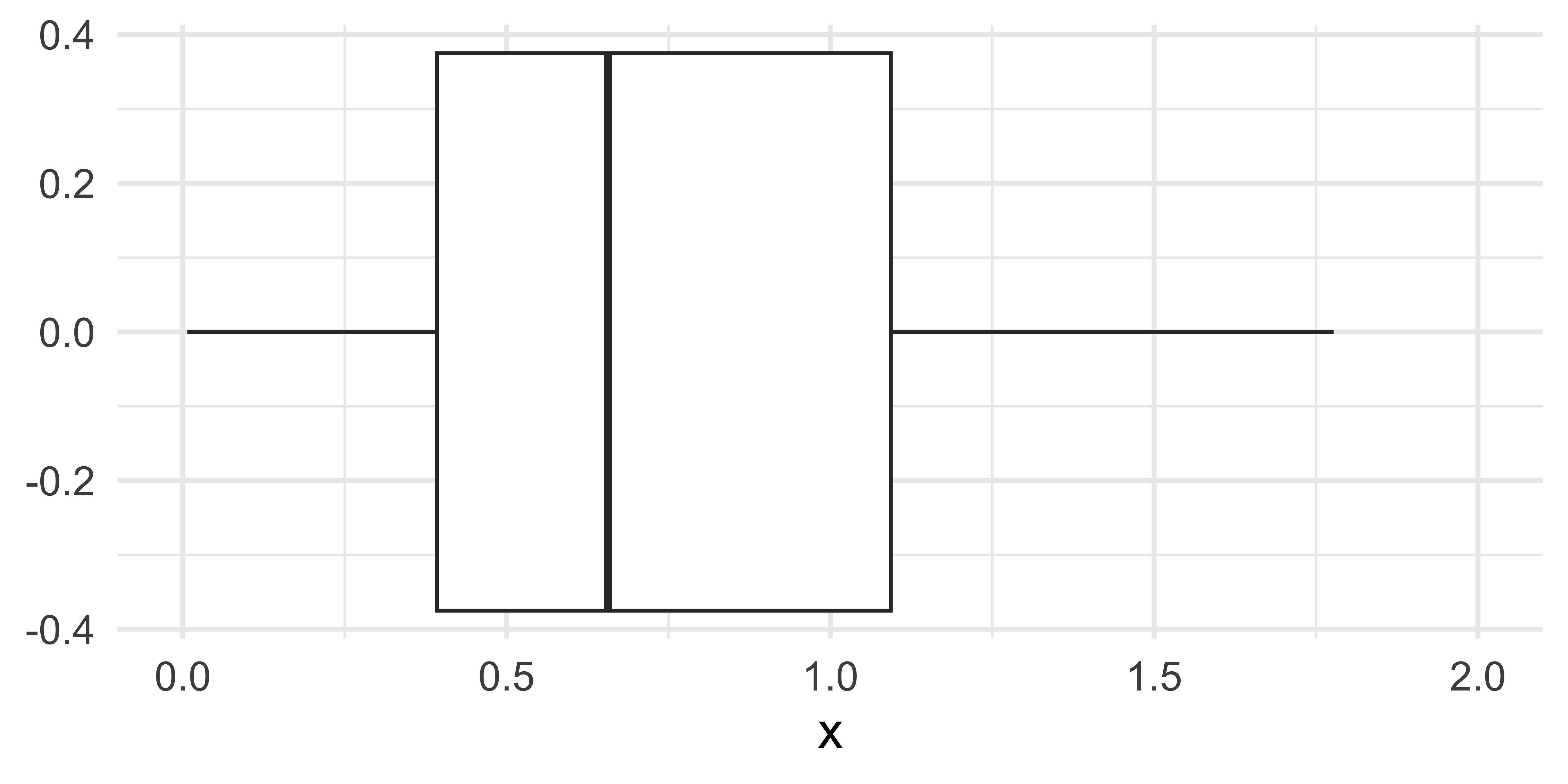

Is it ok to suppress the following warning? Or should you update your code to eliminate it?

p + scale_x_continuous(limits = c(0, 2))
Warning: Removed 69 rows containing non-finite values
(`stat_boxplot()`).

Missing values II

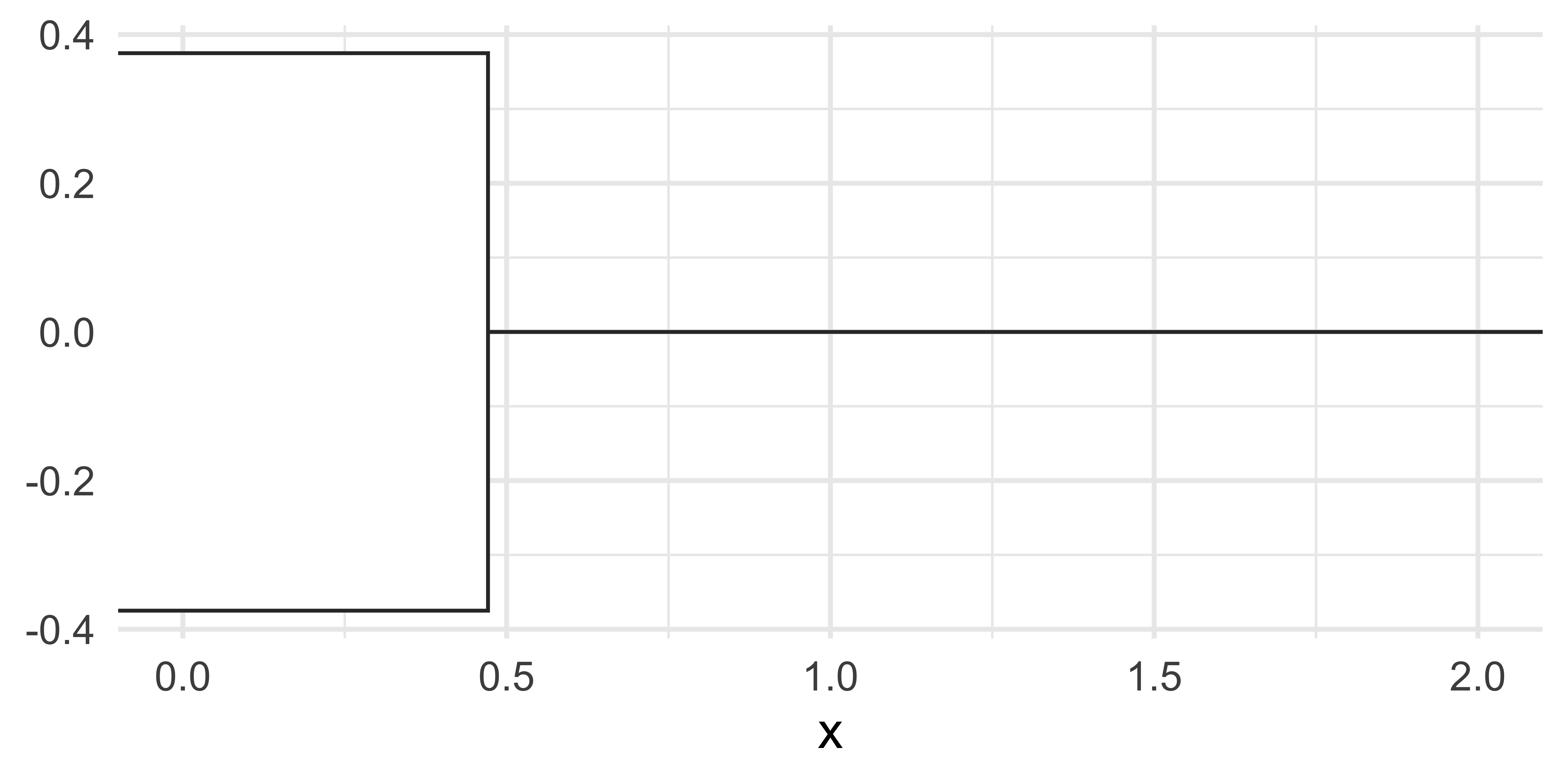

Why doesn’t the following generate a warning?

p + coord_cartesian(xlim = c(0, 2))

Coordinate systems

Coordinate systems: purpose

  • Combine the two position aesthetics (x and y) to produce a 2d position on the plot:
    • linear coordinate system: horizontal and vertical coordinates
    • polar coordinate system: angle and radius
    • maps: latitude and longitude
  • Draw axes and panel backgrounds in coordination with the faceter coordinate systems

Coordinate systems: types

  1. Linear coordinate systems: preserve the shape of geoms
  • coord_cartesian(): the default Cartesian coordinate system, where the 2d position of an element is given by the combination of the x and y positions.
  • coord_fixed(): Cartesian coordinate system with a fixed aspect ratio. (useful only in limited circumstances)
  1. Non-linear coordinate systems: can change the shapes – a straight line may no longer be straight. The closest distance between two points may no longer be a straight line.
  • coord_trans(): Apply arbitrary transformations to x and y positions, after the data has been processed by the stat
  • coord_polar(): Polar coordinates
  • coord_sf(): Map projections

Setting limits: what the plots say

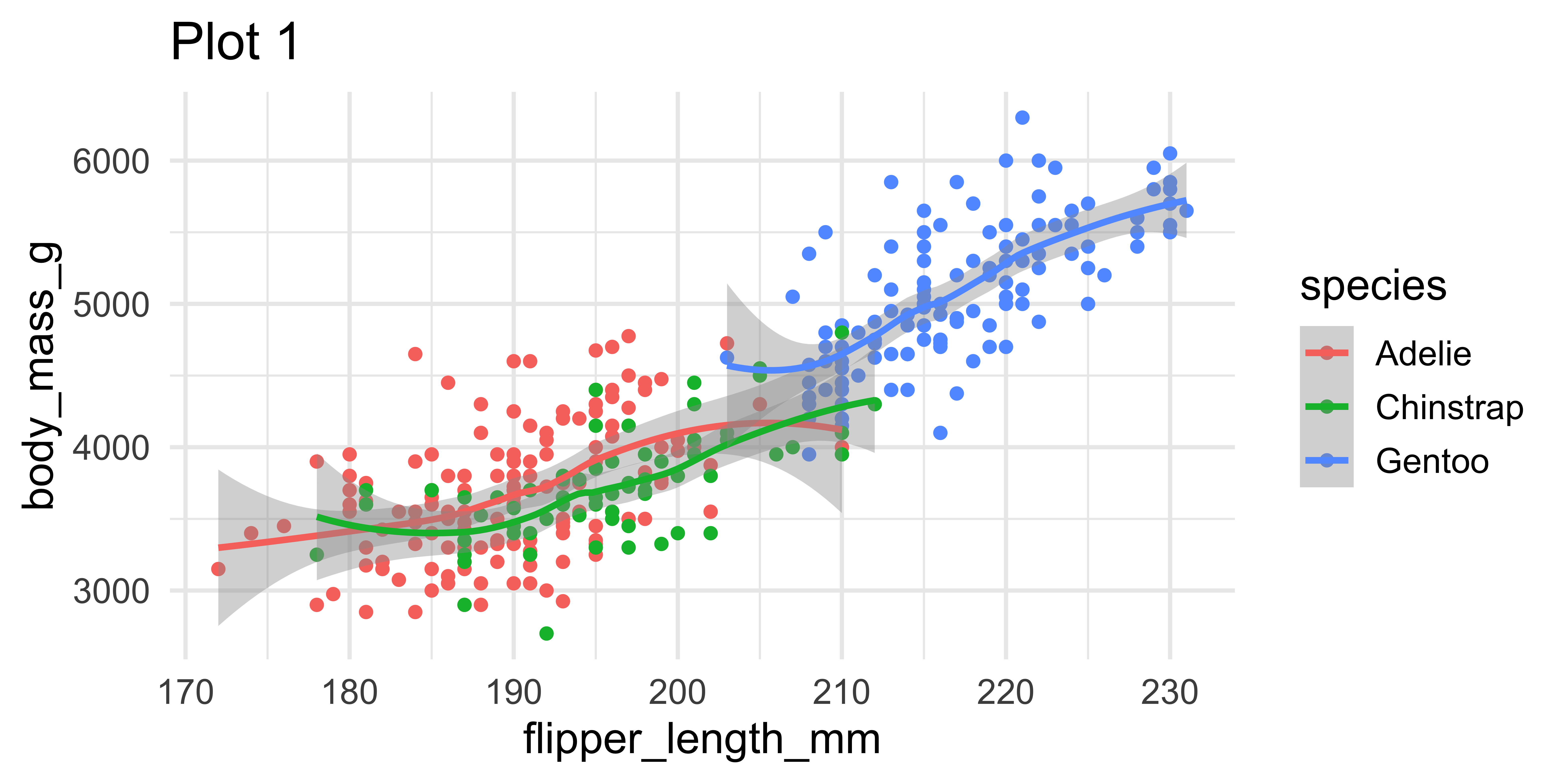

ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g, color = species)) +
  geom_point() + geom_smooth() +
  labs(title = "Plot 1")

ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g, color = species)) +
  geom_point() + geom_smooth() +
  scale_x_continuous(limits = c(190, 220)) + scale_y_continuous(limits = c(4000, 5000)) +
  labs(title = "Plot 2")

ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g, color = species)) +
  geom_point() + geom_smooth() +
  xlim(190, 220) + ylim(4000, 5000) +
  labs(title = "Plot 3")

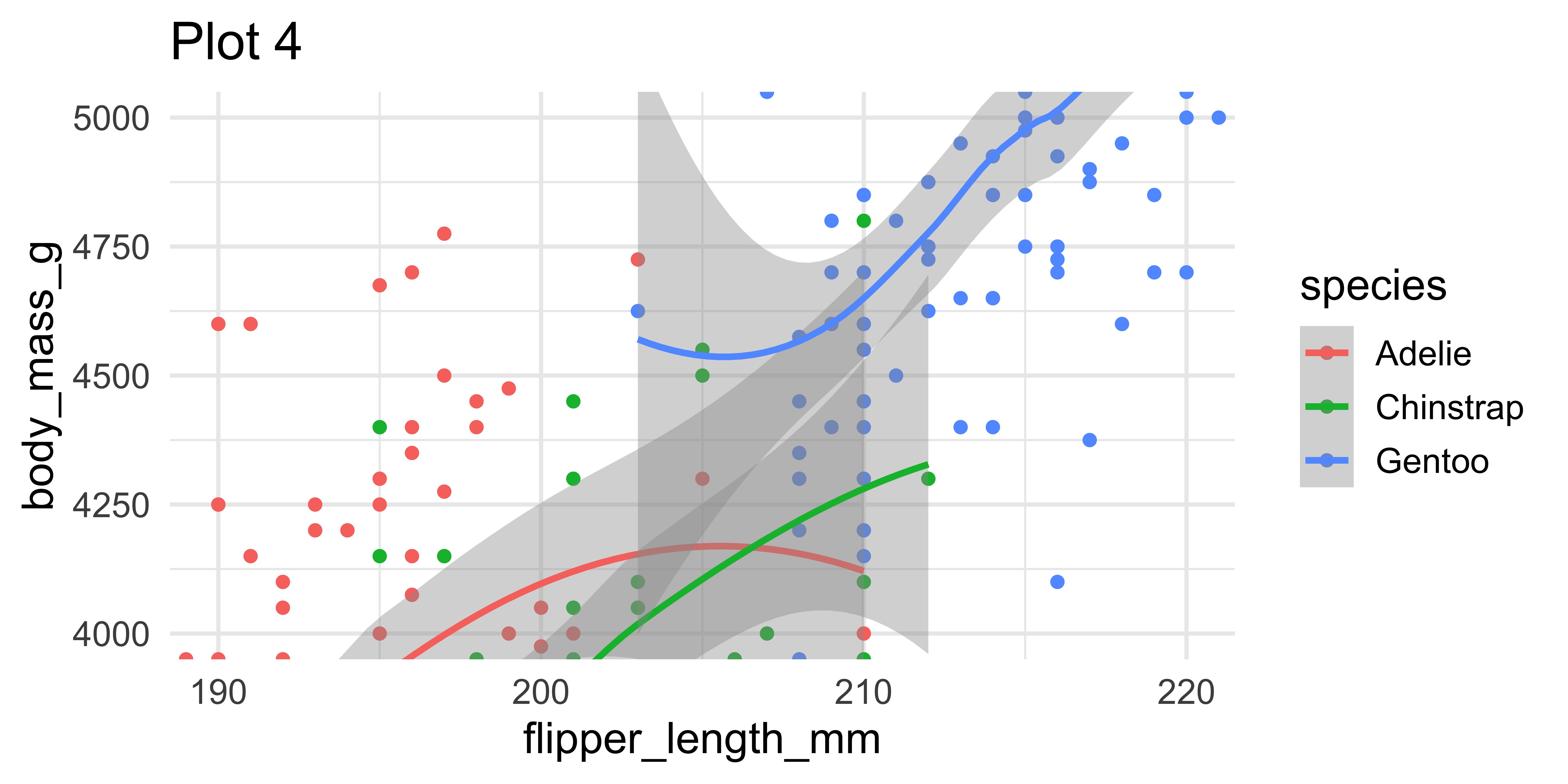

ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g, color = species)) +
  geom_point() + geom_smooth() +
  coord_cartesian(xlim = c(190,220), ylim = c(4000, 5000)) +
  labs(title = "Plot 4")

Setting limits: what the plots say

Setting limits: what the warnings say

ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g, color = species)) +
  geom_point() + geom_smooth() +
  labs(title = "Plot 1")
`geom_smooth()` using method = 'loess' and formula = 'y ~ x'
Warning: Removed 2 rows containing non-finite values
(`stat_smooth()`).
Warning: Removed 2 rows containing missing values
(`geom_point()`).
ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g, color = species)) +
  geom_point() + geom_smooth() +
  scale_x_continuous(limits = c(190, 220)) + scale_y_continuous(limits = c(4000, 5000)) +
  labs(title = "Plot 2")
`geom_smooth()` using method = 'loess' and formula = 'y ~ x'
Warning: Removed 235 rows containing non-finite values
(`stat_smooth()`).
Warning: Removed 235 rows containing missing values
(`geom_point()`).
ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g, color = species)) +
  geom_point() + geom_smooth() +
  xlim(190, 220) + ylim(4000, 5000) +
  labs(title = "Plot 3")
`geom_smooth()` using method = 'loess' and formula = 'y ~ x'
Warning: Removed 235 rows containing non-finite values (`stat_smooth()`).
Removed 235 rows containing missing values (`geom_point()`).
ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g, color = species)) +
  geom_point() + geom_smooth() +
  coord_cartesian(xlim = c(190,220), ylim = c(4000, 5000)) +
  labs(title = "Plot 4")
`geom_smooth()` using method = 'loess' and formula = 'y ~ x'
Warning: Removed 2 rows containing non-finite values
(`stat_smooth()`).
Warning: Removed 2 rows containing missing values
(`geom_point()`).

Setting limits

  • Setting scale limits: Any data outside the limits is thrown away
    • scale_*_continuous(), xlim and ylim arguments
    • xlim() and ylim()
  • Setting coordinate system limits: Use all the data, but only display a small region of the plot (zooming in)
    • coord_cartesian(), xlim and ylim arguments

Fixing aspect ratio with coord_fixed()

Useful when having an aspect ratio of 1 makes sense, e.g. scores on two tests (reading and writing) on the same scale (0 to 100 points)

ggplot(hsb2, aes(x = read, y = write)) +
  geom_point() + geom_smooth(method = "lm") +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed", color = "gray") +
  labs(title = "Not fixed")

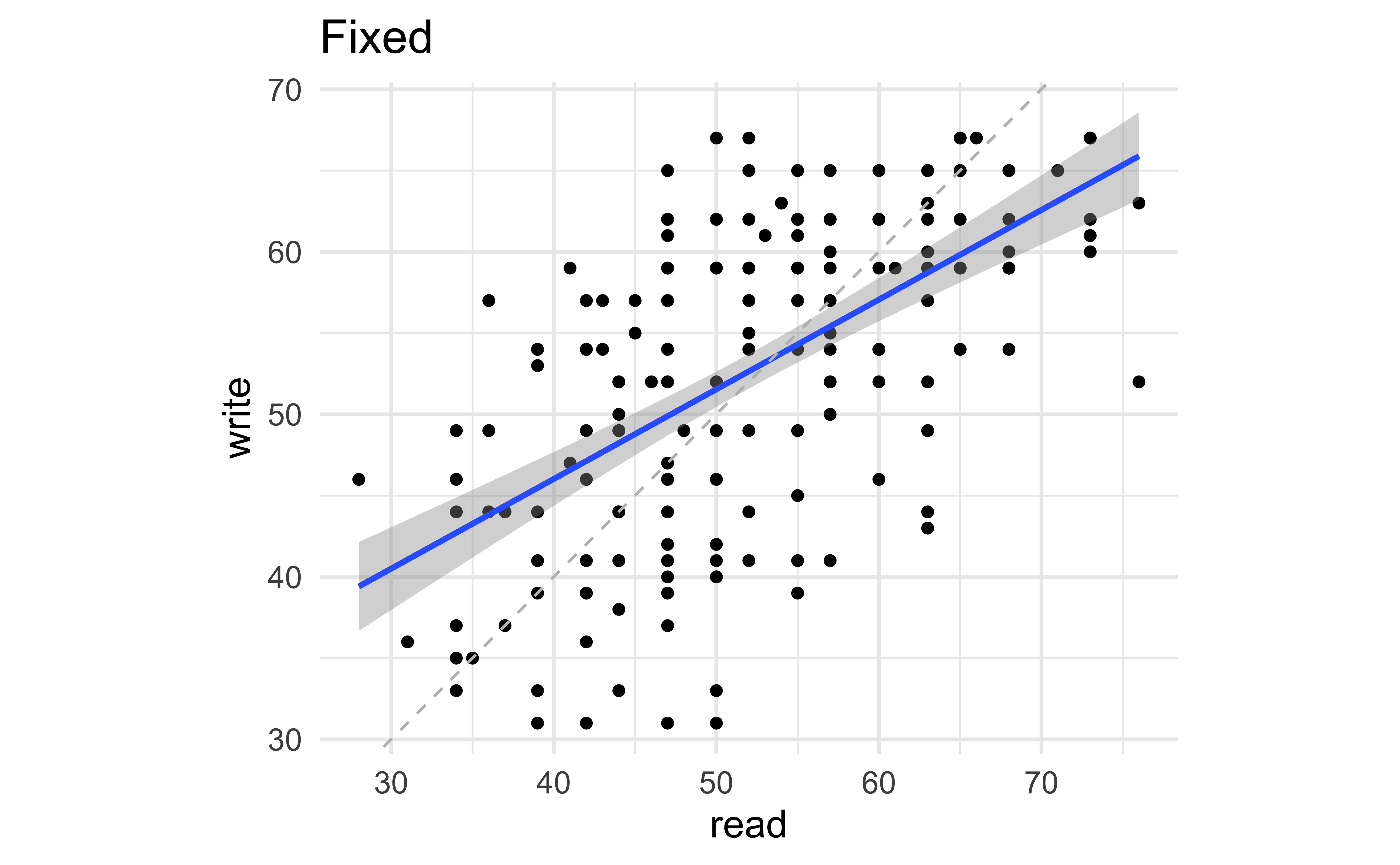

ggplot(hsb2, aes(x = read, y = write)) +
  geom_point() + geom_smooth(method = "lm") +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed", color = "gray") +
  coord_fixed() +
  labs(title = "Fixed")

Fixing aspect ratio with coord_fixed()

Pie charts and bullseye charts with coord_polar()

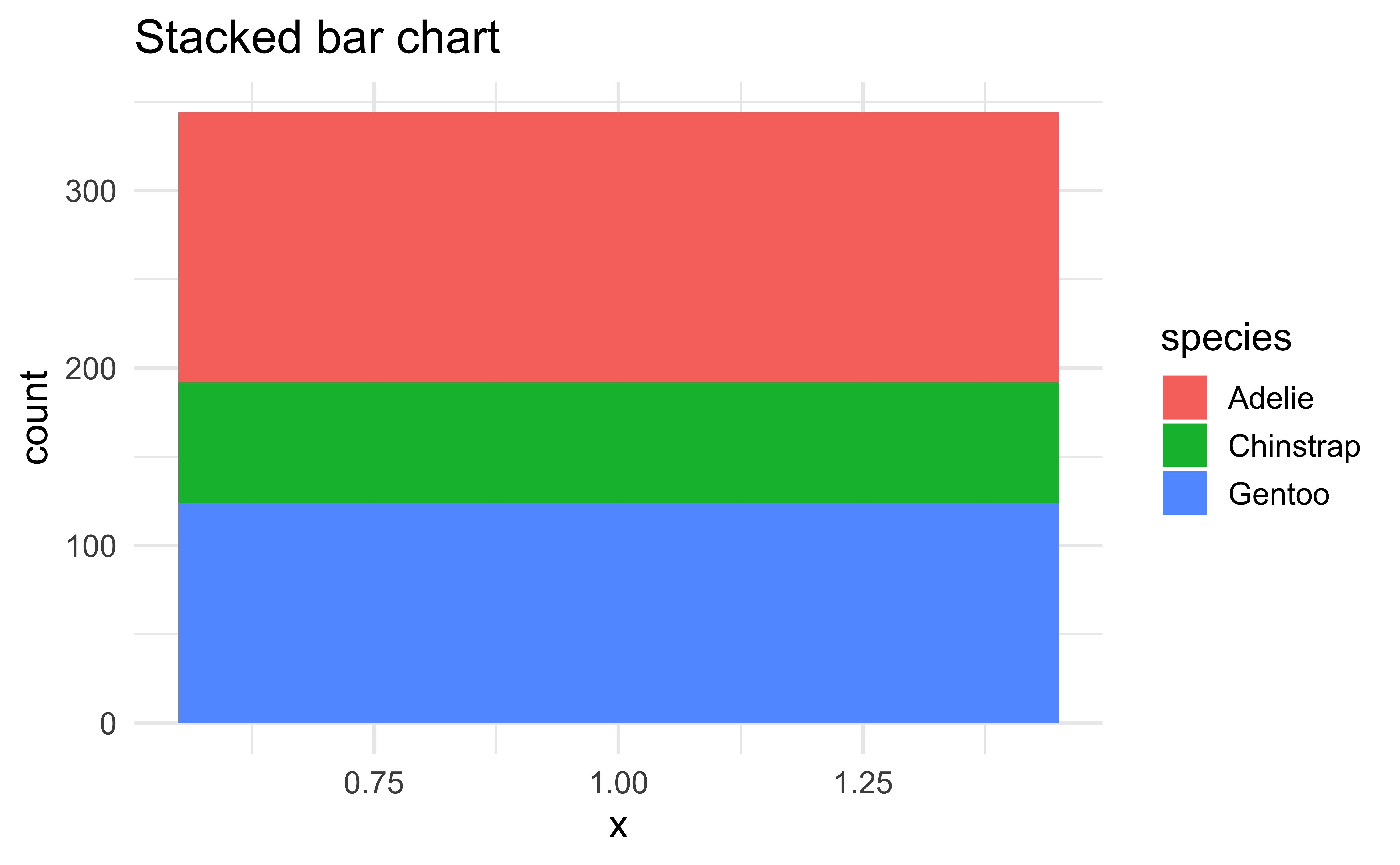

ggplot(penguins, aes(x = 1, fill = species)) +
  geom_bar() +
  labs(title = "Stacked bar chart")

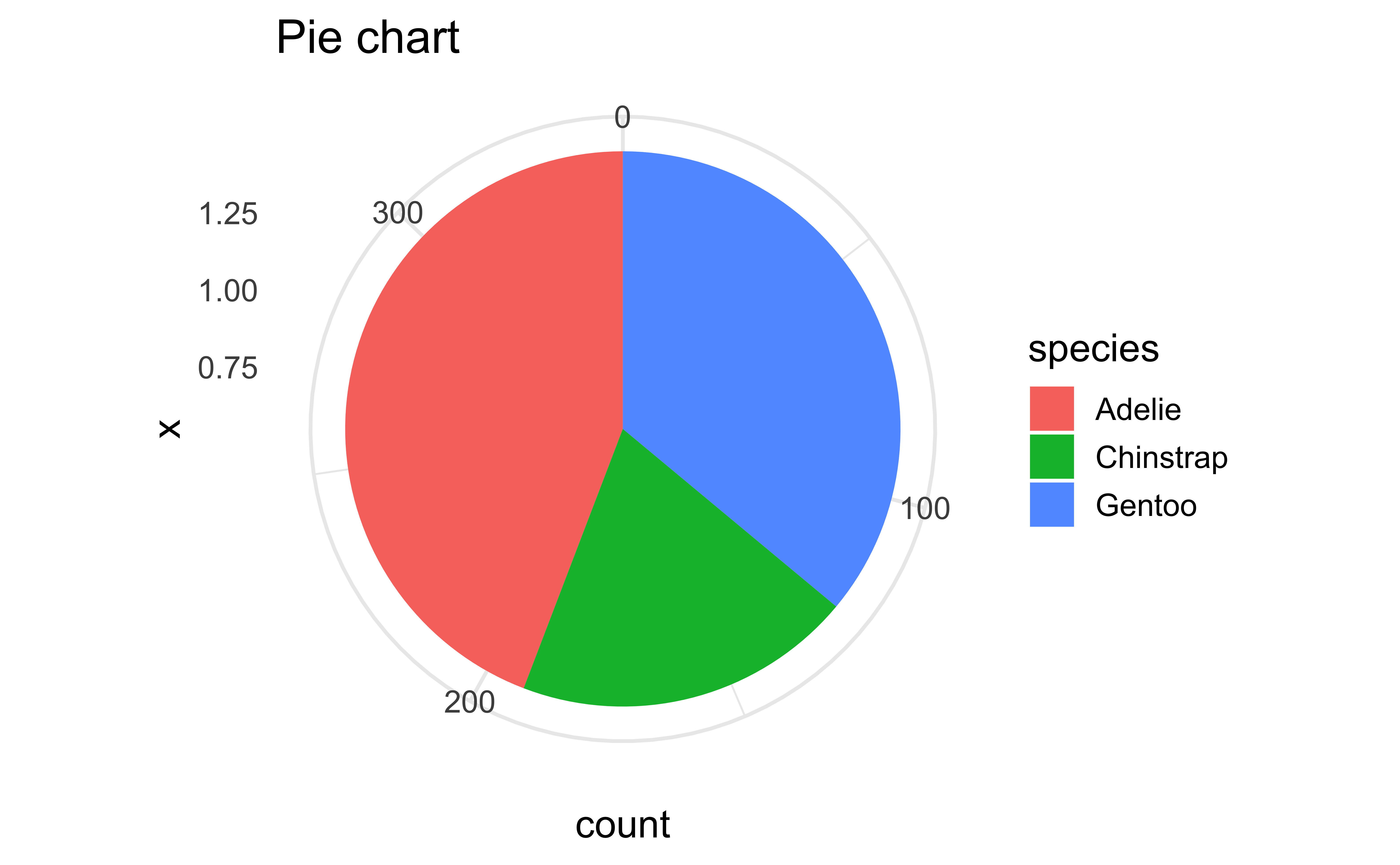

ggplot(penguins, aes(x = 1, fill = species)) +
  geom_bar() +
  coord_polar(theta = "y") +
  labs(title = "Pie chart")

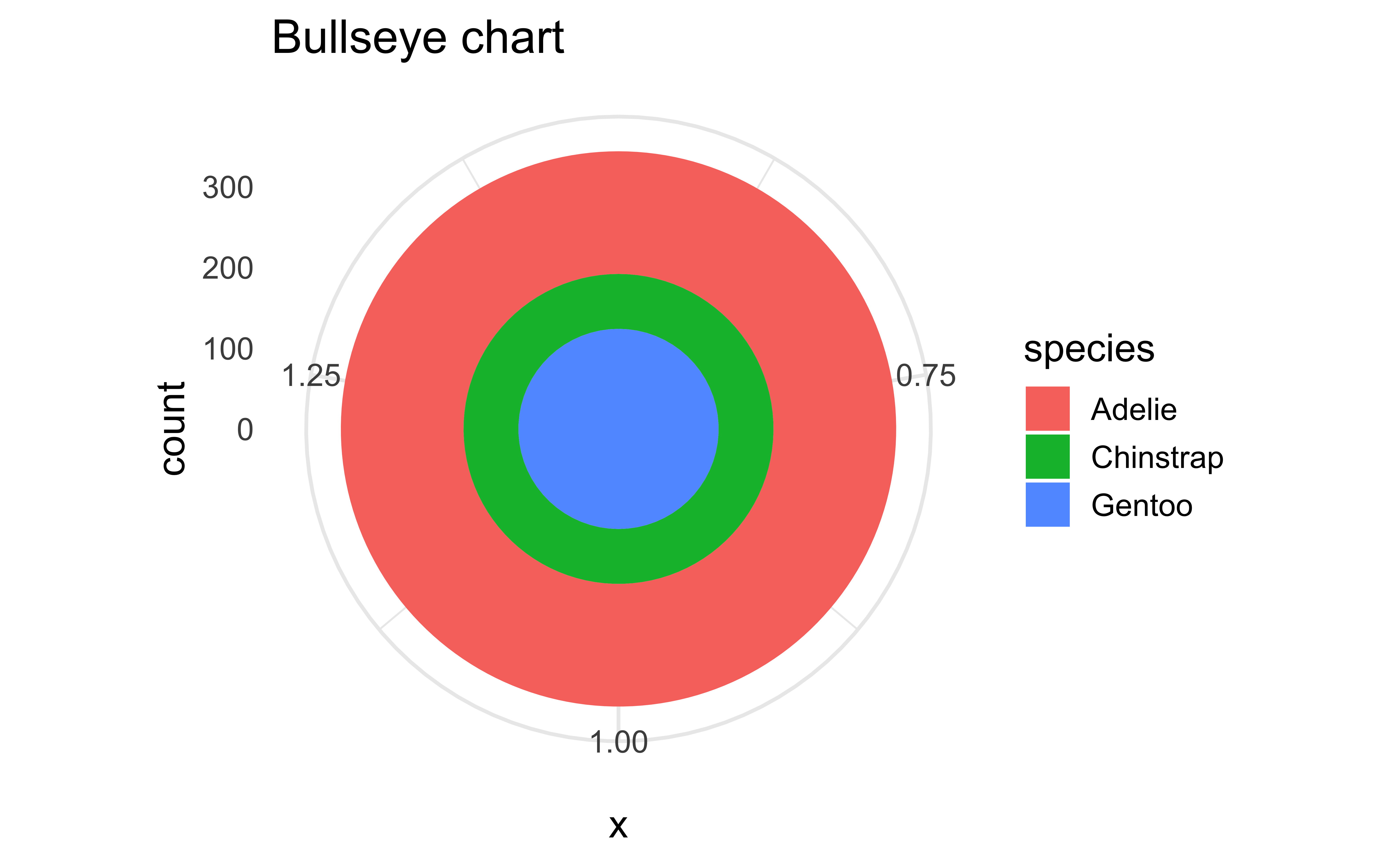

ggplot(penguins, aes(x = 1, fill = species)) +
  geom_bar() +
  coord_polar(theta = "x") +
  labs(title = "Bullseye chart")

aside: about pie charts…

Pie charts

What do you know about pie charts and data visualization best practices? Love ’em or lose ’em?

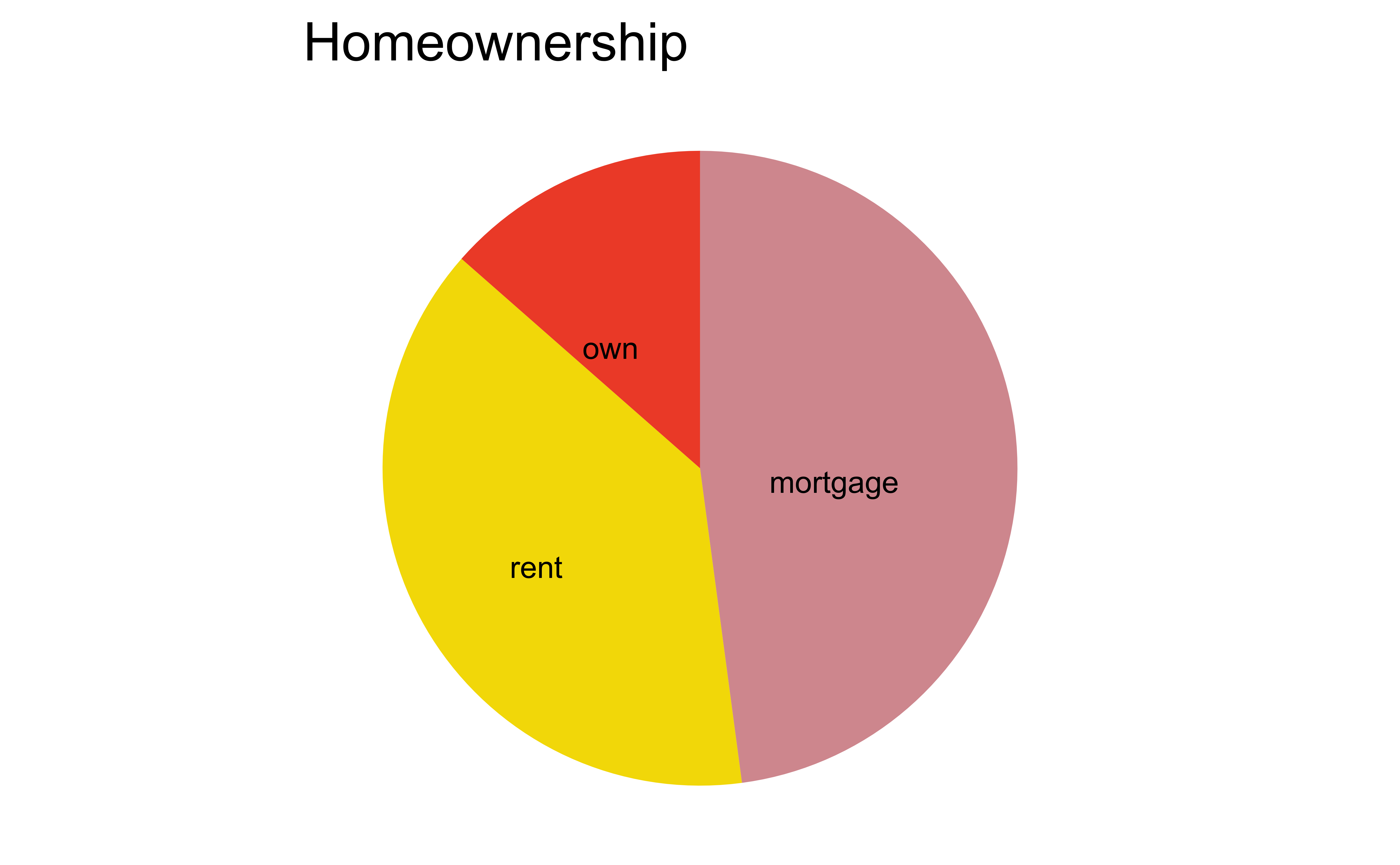

Pie charts: when to love ’em, when to lose ’em

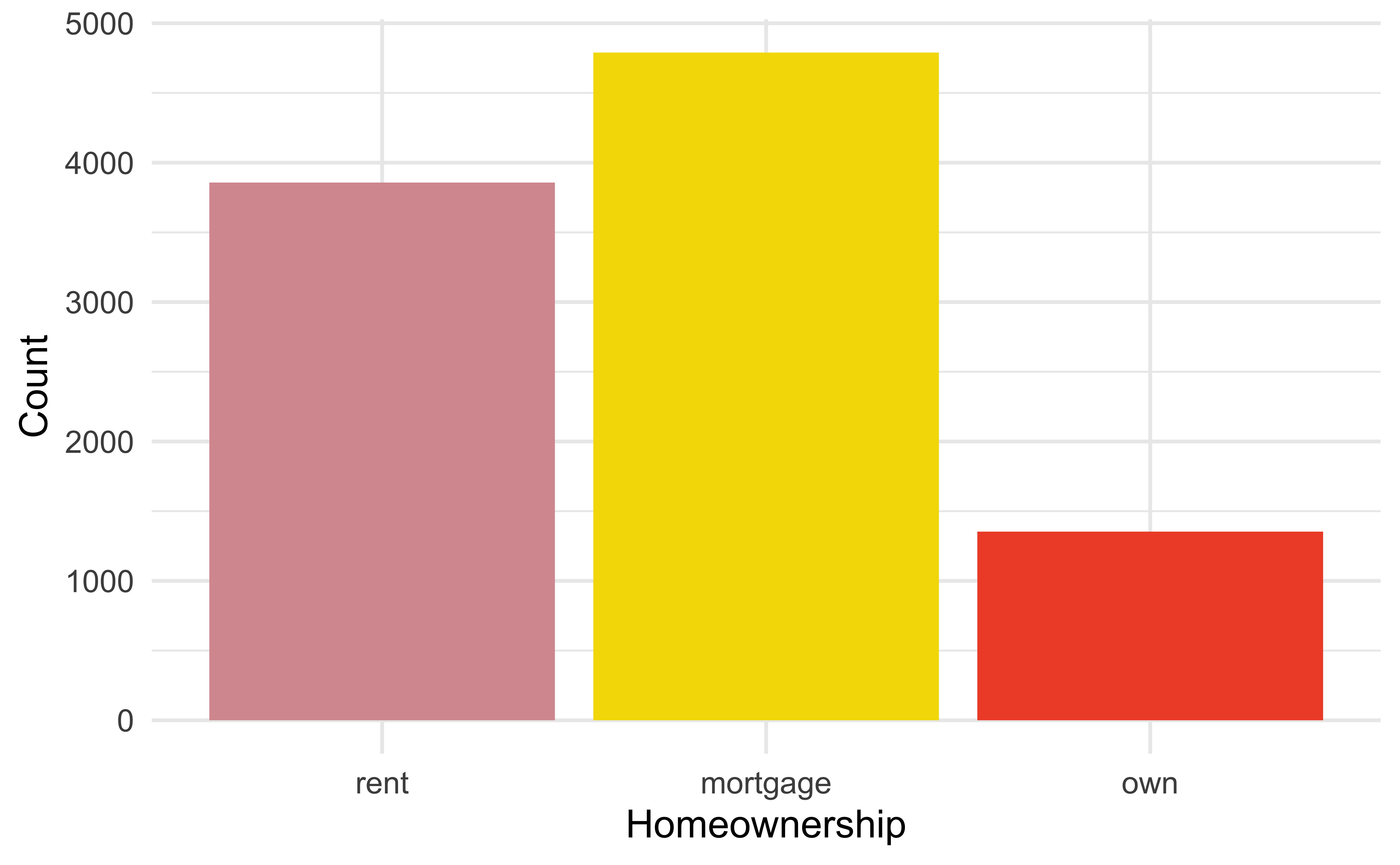

For categorical variables with few levels, bar charts can work well

pie_homeownership
loans %>%
  ggplot(aes(x = homeownership, fill = homeownership)) +
  geom_bar(show.legend = FALSE) +
  scale_fill_openintro("hot") +
  labs(x = "Homeownership", y = "Count")

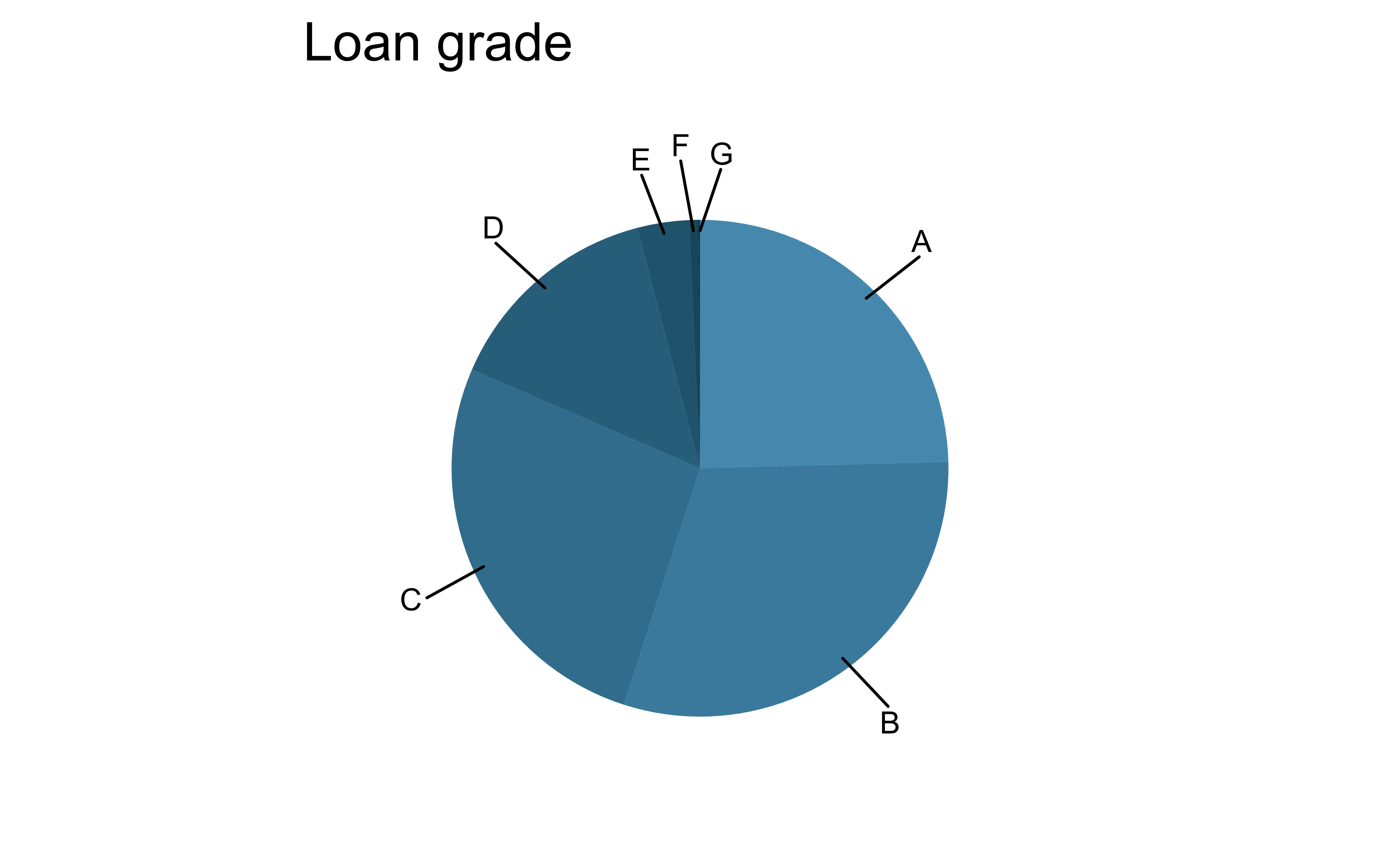

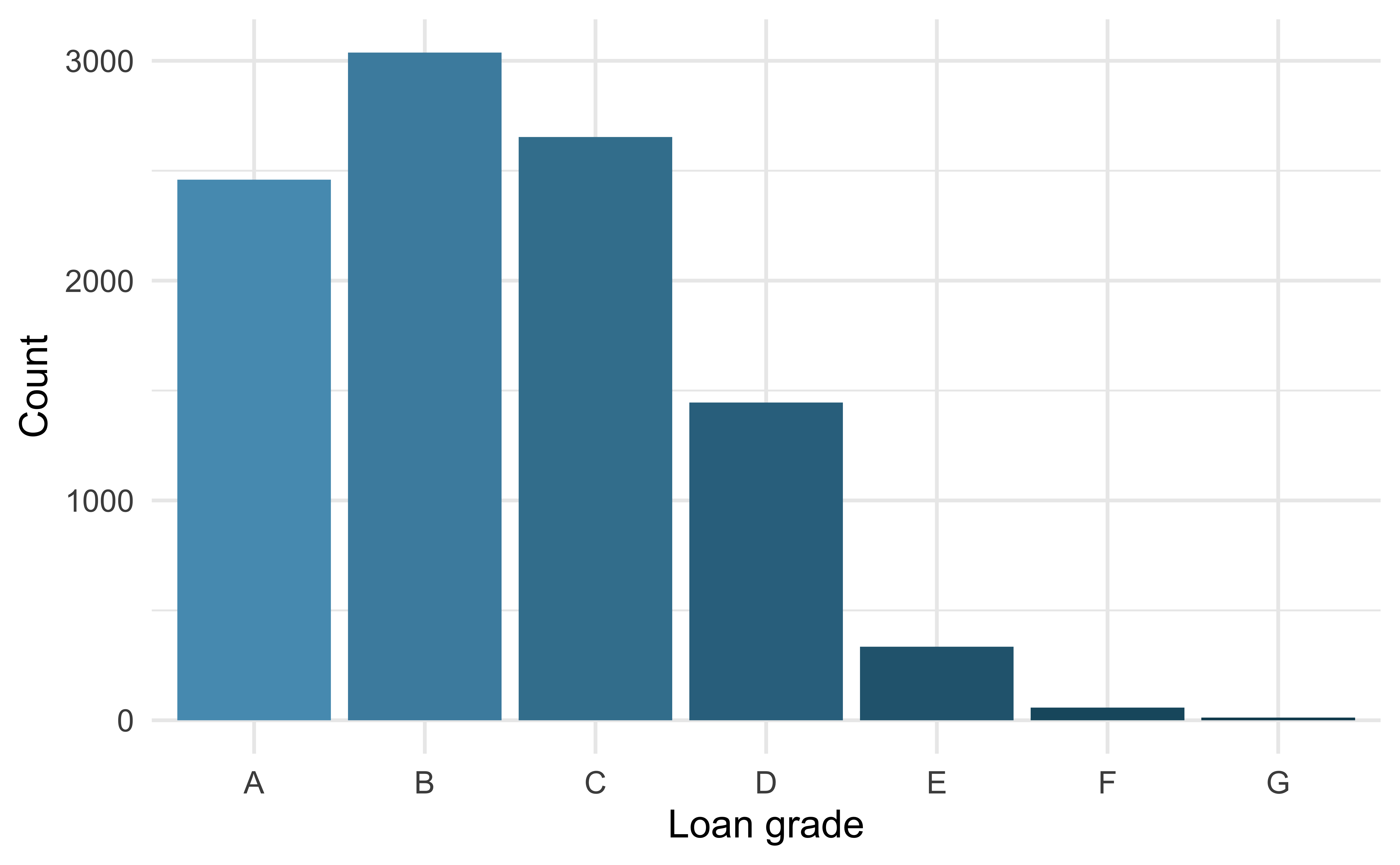

Pie charts: when to love ’em, when to lose ’em

For categorical variables with many levels, bar charts are difficult to read

pie_loan_grades
loans |>
  ggplot(aes(x = grade, fill = grade)) +
  geom_bar(show.legend = FALSE) +
  scale_fill_openintro("cool") +
  labs(x = "Loan grade", y = "Count")

Bringing together multiple data frames

Scenario 2

We…

have multiple data frames

want to want to bring them together so we can plot them

professions <- read_csv("data/professions.csv")
dates <- read_csv("data/dates.csv")
works <- read_csv("data/works.csv")

10 women in science who changed the world

name
Ada Lovelace
Marie Curie
Janaki Ammal
Chien-Shiung Wu
Katherine Johnson
Rosalind Franklin
Vera Rubin
Gladys West
Flossie Wong-Staal
Jennifer Doudna

Inputs

professions
# A tibble: 10 × 2
   name               profession
   <chr>              <chr>
 1 Ada Lovelace       Mathematician
 2 Marie Curie        Physicist and Chemist
 3 Janaki Ammal       Botanist
 4 Chien-Shiung Wu    Physicist
 5 Katherine Johnson  Mathematician
 6 Rosalind Franklin  Chemist
 7 Vera Rubin         Astronomer
 8 Gladys West        Mathematician
 9 Flossie Wong-Staal Virologist and Molecular Biologist
10 Jennifer Doudna    Biochemist
dates
# A tibble: 8 × 3
  name               birth_year death_year
  <chr>                   <dbl>      <dbl>
1 Janaki Ammal             1897       1984
2 Chien-Shiung Wu          1912       1997
3 Katherine Johnson        1918       2020
4 Rosalind Franklin        1920       1958
5 Vera Rubin               1928       2016
6 Gladys West              1930         NA
7 Flossie Wong-Staal       1947         NA
8 Jennifer Doudna          1964         NA
works
# A tibble: 9 × 2
  name               known_for
  <chr>              <chr>
1 Ada Lovelace       first computer algorithm
2 Marie Curie        theory of radioactivity,  first woman Nobel…
3 Janaki Ammal       hybrid species, biodiversity protection
4 Chien-Shiung Wu    experiment overturning theory of parity
5 Katherine Johnson  orbital mechanics critical to sending first…
6 Vera Rubin         existence of dark matter
7 Gladys West        mathematical modeling of the shape of the E…
8 Flossie Wong-Staal first to clone HIV and map its genes, which…
9 Jennifer Doudna    one of the primary developers of CRISPR

Desired output

# A tibble: 10 × 5
   name               profession          birth…¹ death…² known…³
   <chr>              <chr>                 <dbl>   <dbl> <chr>
 1 Ada Lovelace       Mathematician            NA      NA first …
 2 Marie Curie        Physicist and Chem…      NA      NA theory…
 3 Janaki Ammal       Botanist               1897    1984 hybrid…
 4 Chien-Shiung Wu    Physicist              1912    1997 experi…
 5 Katherine Johnson  Mathematician          1918    2020 orbita…
 6 Rosalind Franklin  Chemist                1920    1958 <NA>
 7 Vera Rubin         Astronomer             1928    2016 existe…
 8 Gladys West        Mathematician          1930      NA mathem…
 9 Flossie Wong-Staal Virologist and Mol…    1947      NA first …
10 Jennifer Doudna    Biochemist             1964      NA one of…
# … with abbreviated variable names ¹​birth_year, ²​death_year,
#   ³​known_for

Inputs, reminder

names(professions)
[1] "name"       "profession"
names(dates)
[1] "name"       "birth_year" "death_year"
names(works)
[1] "name"      "known_for"
nrow(professions)
[1] 10
nrow(dates)
[1] 8
nrow(works)
[1] 9

Joining data frames

something_join(x, y)
  • left_join(): all rows from x
  • right_join(): all rows from y
  • full_join(): all rows from both x and y
  • semi_join(): all rows from x where there are matching values in y, keeping just columns from x
  • inner_join(): all rows from x where there are matching values in y, return all combination of multiple matches in the case of multiple matches
  • anti_join(): return all rows from x where there are not matching values in y, never duplicate rows of x
  • …

Setup

For the next few slides…

x <- tibble(
  id = c(1, 2, 3),
  value_x = c("x1", "x2", "x3")
  )

x
# A tibble: 3 × 2
     id value_x
  <dbl> <chr>
1     1 x1
2     2 x2
3     3 x3
y <- tibble(
  id = c(1, 2, 4),
  value_y = c("y1", "y2", "y4")
  )

y
# A tibble: 3 × 2
     id value_y
  <dbl> <chr>
1     1 y1
2     2 y2
3     4 y4

left_join()

left_join(x, y)
Joining with `by = join_by(id)`
# A tibble: 3 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     3 x3      <NA>

left_join()

professions |>
  left_join(dates)
Joining with `by = join_by(name)`
# A tibble: 10 × 4
   name               profession                  birth…¹ death…²
   <chr>              <chr>                         <dbl>   <dbl>
 1 Ada Lovelace       Mathematician                    NA      NA
 2 Marie Curie        Physicist and Chemist            NA      NA
 3 Janaki Ammal       Botanist                       1897    1984
 4 Chien-Shiung Wu    Physicist                      1912    1997
 5 Katherine Johnson  Mathematician                  1918    2020
 6 Rosalind Franklin  Chemist                        1920    1958
 7 Vera Rubin         Astronomer                     1928    2016
 8 Gladys West        Mathematician                  1930      NA
 9 Flossie Wong-Staal Virologist and Molecular B…    1947      NA
10 Jennifer Doudna    Biochemist                     1964      NA
# … with abbreviated variable names ¹​birth_year, ²​death_year

right_join()

right_join(x, y)
Joining with `by = join_by(id)`
# A tibble: 3 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     4 <NA>    y4

right_join()

professions |>
  right_join(dates)
Joining with `by = join_by(name)`
# A tibble: 8 × 4
  name               profession                   birth…¹ death…²
  <chr>              <chr>                          <dbl>   <dbl>
1 Janaki Ammal       Botanist                        1897    1984
2 Chien-Shiung Wu    Physicist                       1912    1997
3 Katherine Johnson  Mathematician                   1918    2020
4 Rosalind Franklin  Chemist                         1920    1958
5 Vera Rubin         Astronomer                      1928    2016
6 Gladys West        Mathematician                   1930      NA
7 Flossie Wong-Staal Virologist and Molecular Bi…    1947      NA
8 Jennifer Doudna    Biochemist                      1964      NA
# … with abbreviated variable names ¹​birth_year, ²​death_year

full_join()

full_join(x, y)
Joining with `by = join_by(id)`
# A tibble: 4 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     3 x3      <NA>
4     4 <NA>    y4

full_join()

dates |>
  full_join(works)
Joining with `by = join_by(name)`
# A tibble: 10 × 4
   name               birth_year death_year known_for
   <chr>                   <dbl>      <dbl> <chr>
 1 Janaki Ammal             1897       1984 hybrid species, biod…
 2 Chien-Shiung Wu          1912       1997 experiment overturni…
 3 Katherine Johnson        1918       2020 orbital mechanics cr…
 4 Rosalind Franklin        1920       1958 <NA>
 5 Vera Rubin               1928       2016 existence of dark ma…
 6 Gladys West              1930         NA mathematical modelin…
 7 Flossie Wong-Staal       1947         NA first to clone HIV a…
 8 Jennifer Doudna          1964         NA one of the primary d…
 9 Ada Lovelace               NA         NA first computer algor…
10 Marie Curie                NA         NA theory of radioactiv…

inner_join()

inner_join(x, y)
Joining with `by = join_by(id)`
# A tibble: 2 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2

inner_join()

dates |>
  inner_join(works)
Joining with `by = join_by(name)`
# A tibble: 7 × 4
  name               birth_year death_year known_for
  <chr>                   <dbl>      <dbl> <chr>
1 Janaki Ammal             1897       1984 hybrid species, biodi…
2 Chien-Shiung Wu          1912       1997 experiment overturnin…
3 Katherine Johnson        1918       2020 orbital mechanics cri…
4 Vera Rubin               1928       2016 existence of dark mat…
5 Gladys West              1930         NA mathematical modeling…
6 Flossie Wong-Staal       1947         NA first to clone HIV an…
7 Jennifer Doudna          1964         NA one of the primary de…

semi_join()

semi_join(x, y)
Joining with `by = join_by(id)`
# A tibble: 2 × 2
     id value_x
  <dbl> <chr>
1     1 x1
2     2 x2

semi_join()

dates |>
  semi_join(works)
Joining with `by = join_by(name)`
# A tibble: 7 × 3
  name               birth_year death_year
  <chr>                   <dbl>      <dbl>
1 Janaki Ammal             1897       1984
2 Chien-Shiung Wu          1912       1997
3 Katherine Johnson        1918       2020
4 Vera Rubin               1928       2016
5 Gladys West              1930         NA
6 Flossie Wong-Staal       1947         NA
7 Jennifer Doudna          1964         NA

anti_join()

anti_join(x, y)
Joining with `by = join_by(id)`
# A tibble: 1 × 2
     id value_x
  <dbl> <chr>
1     3 x3

anti_join()

dates |>
  anti_join(works)
Joining with `by = join_by(name)`
# A tibble: 1 × 3
  name              birth_year death_year
  <chr>                  <dbl>      <dbl>
1 Rosalind Franklin       1920       1958

Putting it altogether

scientists <- professions |>
  left_join(dates) |>
  left_join(works)
Joining with `by = join_by(name)`
Joining with `by = join_by(name)`
scientists
# A tibble: 10 × 5
   name               profession          birth…¹ death…² known…³
   <chr>              <chr>                 <dbl>   <dbl> <chr>
 1 Ada Lovelace       Mathematician            NA      NA first …
 2 Marie Curie        Physicist and Chem…      NA      NA theory…
 3 Janaki Ammal       Botanist               1897    1984 hybrid…
 4 Chien-Shiung Wu    Physicist              1912    1997 experi…
 5 Katherine Johnson  Mathematician          1918    2020 orbita…
 6 Rosalind Franklin  Chemist                1920    1958 <NA>
 7 Vera Rubin         Astronomer             1928    2016 existe…
 8 Gladys West        Mathematician          1930      NA mathem…
 9 Flossie Wong-Staal Virologist and Mol…    1947      NA first …
10 Jennifer Doudna    Biochemist             1964      NA one of…
# … with abbreviated variable names ¹​birth_year, ²​death_year,
#   ³​known_for

*_join() functions

  • From dplyr
  • Incredibly useful for bringing datasets with common information (e.g., unique identifier) together
  • Use by argument when the names of the column containing the common information are not the same across datasets
  • Always check that the numbers of rows and columns of the result dataset makes sense
  • Refer to two-table verbs vignette when needed

Visualizing joined data

But first…

What is the plot in the previous slide called?

Livecoding

Reveal below for code developed during live coding session.

  • Transform
Code
scientists_longer <- scientists |>
  mutate(
    birth_year = case_when(
      name == "Ada Lovelace" ~ 1815,
      name == "Marie Curie" ~ 1867,
      TRUE ~ birth_year
    ),
    death_year = case_when(
      name == "Ada Lovelace" ~ 1852,
      name == "Marie Curie" ~ 1934,
      name == "Flossie Wong-Staal" ~ 2020,
      TRUE ~ death_year
    ),
    status = if_else(is.na(death_year), "alive", "deceased"),
    death_year = if_else(is.na(death_year), 2021, death_year),
    known_for = if_else(name == "Rosalind Franklin", "understanding of the molecular structures of DNA ", known_for)
  ) |>
  pivot_longer(
    cols = contains("year"),
    names_to = "year_type",
    values_to = "year"
  ) |>
  mutate(death_year_fake = if_else(year == 2021, TRUE, FALSE))
  • Plot
Code
ggplot(scientists_longer,
       aes(x = year, y = fct_reorder(name, as.numeric(factor(profession))), group = name, color = profession)) +
  geom_point(aes(shape = death_year_fake), show.legend = FALSE) +
  geom_line(aes(linetype = status), show.legend = FALSE) +
  scale_shape_manual(values = c("circle", NA)) +
  scale_linetype_manual(values = c("dashed", "solid")) +
  scale_color_colorblind() +
  scale_x_continuous(expand = c(0.01, 0), breaks = seq(1820, 2020, 50)) +
  geom_text(aes(y = name, label = known_for), x = 2030, show.legend = FALSE, hjust = 0) +
  geom_text(aes(label = profession), x = 1809, y = Inf, hjust = 1, vjust = 1, show.legend = FALSE) +
  coord_cartesian(clip = "off") +
  labs(
    x = "Year", y = NULL,
    title = "10 women in science who changed the world",
    caption = "Source: Discover magazine"
  ) +
  facet_grid(profession ~ ., scales = "free_y", space = "free_y", switch = "x") +
  theme(
    plot.margin = unit(c(1, 23, 1, 4), "lines"),
    plot.title.position = "plot",
    plot.caption.position = "plot",
    plot.caption = element_text(hjust = 2), # manual hack
    strip.background = element_blank(),
    strip.text = element_blank(),
    axis.title.x = element_text(hjust = 0),
    panel.background = element_rect(fill = "#f0f0f0", color = "white"),
    panel.grid.major = element_line(color = "white", size = 0.5)
  )

🔗 vizdata.org
